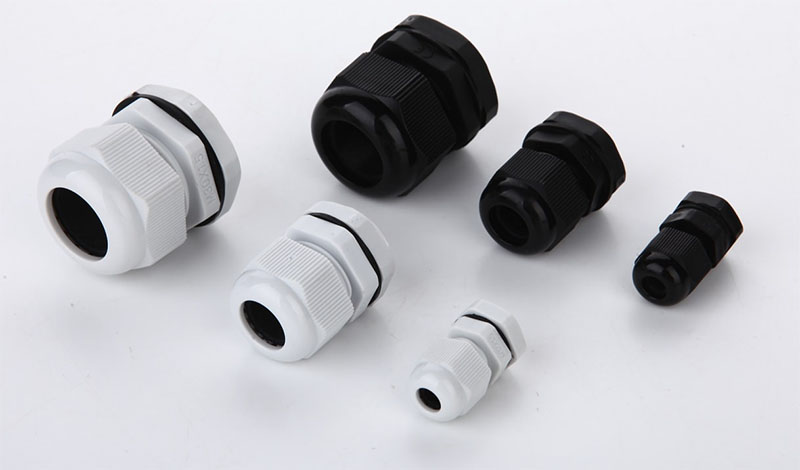

SwitchgearNylon Cable Glands PG & MM Thread
Our Cable glands are made of polyamide 6.0 ideally suited to guarantee optimum conditions for impact resistance and full insulation
Features
- Effective gripping is provided on tightening of caps, which ensure that complete strain relief is provided to your cables
- Specially provided grove on internal part of the cap nut acts as a ratchet, which provides self locking and vibration resistant fixing
- Easy mounting of cable glands is provided for introducing cables and conductors in to machines
- Secure and fast connection in various industries ranging from machinery and equipment manufacture, measuring and control electronic, automation, electrical and robotics.
- Protection Class I.P-67 liquid and dust tight connection total relief provided to your cable
Technical Specification
- Body: Polyamide 6
- Sealing: EPDM
- Temp: Static -30°c + 120°c Dynamic -10°c + 80°c
- Protection Class - I.P 65
- Color: Grey, White & Black
- Certification: ROHS.
Selection Chart
| Sr. No. | Threading type | Cable Range (In MM) | Mounting Diameter Ø | Packing |
|---|---|---|---|---|
| 1 | M 12x1.5 | 2.5-6.5 | 12 | 25 |
| 2 | M 16x1.5 | 3.5-8 | 16 | 25 |
| 3 | M 20x1.5 | 7-12 | 20 | 25 |
| 4 | M 25x1.5 | 9-14 | 25 | 25 |
| 5 | M 32x1.5 | 13-18 | 32 | 25 |
| 6 | M 40x1.5 | 14-25 | 40 | 10 |
| 7 | M 50x1.5 | 22-32 | 50 | 5 |
| 8 | M 20x1.5 | 7-12 | 20 | 25 |
| 9 | M 25x1.5 | 9-14 | 25 | 25 |
| 10 | M 20x1.5 | 7-12 | 20 | 25 |
| 11 | M 25x1.5 | 13-18 | 25 | 25 |
Our Cable glands are made of polyamide 6.0 ideally suited to guarantee optimum conditions for impact resistance and full insulation
Features
- Effective gripping is provided on tightening of caps, which ensure that complete strain relief is provided to your cables
- Specially provided grove on internal part of the cap nut acts as a ratchet, which provides self locking and vibration resistant fixing
- Easy mounting of cable glands is provided for introducing cables and conductors in to machines
- Secure and fast connection in various industries ranging from machinery and equipment manufacture, measuring and control electronic, automation, electrical and robotics.
- Protection Class I.P-67 liquid and dust tight connection total relief provided to your cable
Technical Specification
- Body: Polyamide 6
- Sealing: EPDM
- Temp: Static -30°c + 120°c, Dynamic -10°c + 80°c
- Protection Class - I.P 65
- Color: Grey, White & Black
- Certification: ROHS.
Selection Chart
| Sr. No. | Threading type | Cable Range (In MM) | Mounting Diameter ø | Packing |
|---|---|---|---|---|
| 1 | PG-7 | 2.5-6.5 | 12.25 | 25 |
| 2 | PG-9 | 3.5-8 | 15.08 | 25 |
| 3 | PG-11 | 4-10 | 19.00 | 25 |
| 4 | PG-13.5 | 5-12 | 20.05 | 25 |
| 5 | PG-16 | 9-14 | 15.08 | 25 |
| 6 | PG-21 | 13-18 | 28.45 | 25 |
| 7 | PG-29 | 14-25 | 28.45 | 25 |
| 8 | PG-36 | 19-32 | 46.12 | 10 |
| 9 | PG-42 | 28-40 | 50.50 | 5 |
| 10 | PG-48 | 32-44 | 50.50 | 5 |
| 11 | PG-63 | 40-50 | 70.05 | 5 |
