SwitchgearPVC Heat Shrink Sleeve
| Width (mm) | Maximum Busbar Size (mm x mm) |
|---|---|
| 17 | 9 x 3 mm; 10 x 3 mm |
| 20 | 9 x 6 mm; 10 x 6 mm; 12 x 3 mm |
| 25 | 12 x 6 mm; 15 x 3 mm |
| 30 | 16 x 3 mm; 18 x 6 mm; 20 x 3 mm |
| 35 | 20 x 6 mm; 25 x 3 mm |
| 41 | 25 x 6 mm; 25 x 10 mm |
| 48 | 25 x 12 mm; 30 x 6 mm; 30 x 10 mm |
| 55 | 30 x 12 mm; 38 x 6 mm |
| 61 | 38 x 12 mm; 40 x 6 mm; 40 x 10 mm; 40 x 12 mm |
| 73 | 50 x 6 mm |
| 81 | 50 x 10 mm; 50 x 12 mm |
| 85 | 60 x 6 mm; 60 x 10 mm |
| 93 | 75 x 6 mm |
| 103 | 75 x 12 mm; 80 x 6 mm |
| 110 | 80 x 12 mm; 80 x 12 mm; 90 x 6 mm; 90 x 12mm |
| 128 | 100 x 6 mm; 100 x 10 mm/td> |
| 140 | 100 x 12 mm |
| 170 | 125 x 6 mm; 125 x 10 mm |
| 190 | 150 x 6 mm; 150 x 10 mm; 150 x 12 mm |
| 210 | 175 x 6 mm; 175 x 10 mm; 175 x 12 mm |
| 230 | 200 x 12 mm |
| Properties | |
|---|---|
| Working Temperature | 90°C |
| Dielectric Strength | 10 KV/mm |
| Insulation Resistance | 20 x 1010 Ohms at 500 V DC |
| Tensile Stre`ngth | 400 Kg/cm (min.) |
| Ultimate Elongation | 100% (min.) |
| Chemical Resistance | Good |
| Fire Resistance | Self Extinguishing |
| Shrinkable Temperature | 105°C - 110°C for 4-5 min. |
| Shrinkage | 30% - 35% |
| Dimensional Variance | ± 1.5 mm (for size 17 mm to 61 mm) ± 3mm (for size 73 mm to 230 mm) |
| Thickness | 0.17 ± 0.02 mm |

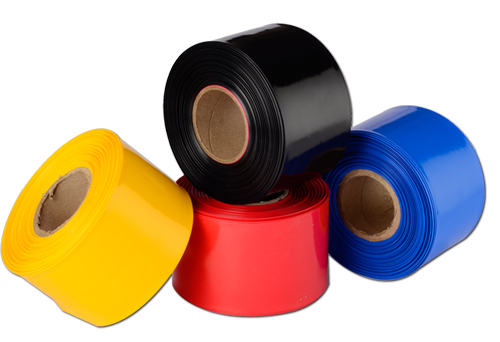

PVC Heat Shrinkable Lay Flat Tubing provides the perfect electrical insulation for Bus bars of low tension systems in control panels & switchgear systems. Bus bar sleeves are an excellent latest modern technology for insulation compared to age old conventional method of taping and painting etc.
Our Product is available from 17 mm width to 300 mm width and in thickness ranging from 80 microns to 400 microns for the complete range of Bus Bar and which covers the variations as required by local/export units also.
- Material : PVC
- Colour Specification : Red; Yellow; Blue; Black
- All Dimensions are in MM
Bus Bar Insulation for Low Tension System in Control Panels and Switchgear Systems.
